DFK-25-0002 | SCHURTER
Suppressor choke, 10 mH, 2 A, DFK-25-0002
Order No.: 59P8804
EAN: 4099889001723
MPN:
DFK-25-0002
This item is no longer available.
As an alternative, we recommend the following item:

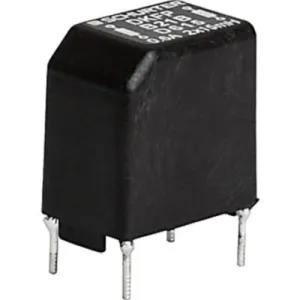

Suppressor choke, 1.1 mH, 2 A, DKFP-A21A-021J
Order No.: 59P8852
Manufacturer: SCHURTER
per pc. 1.6065 € *
Suppressor inductor, DFK-25-0002, SCHURTER
The DFK-25-0002 is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.
Features
- Current compensated choke
- 1- or 3-phase choke
- THT terminals or wire leads
- Flange for mounting onto printed circuit board
Applications
- Attenuation of common mode interferences
- May also be used in direct current applications where magnetic compensation is required
- Designed for 230/400 VAC applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 10 mH | |
| Length | 25 mm | |
| DC resistance | 250 mΩ | |
| Tolerance | -30/+50 % | |
| DC current | 2 A | |
| Width | 25 mm | |
| Height | 20 mm | |
| Version | suppressor choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LK |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
