3-143-899 | SCHURTER

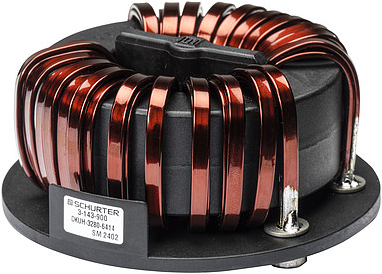

High current choke, PCB mounting, 24.3 mH, 50 A, 3-143-899
Unit Price (€ / pc.)
75.6126 € *
Standard delivery time from the manufacturer is: 9 Weeks
High current choke, 3-143-899, SCHURTER
The 3-143-899 is an compensated choke designed for high current applications in a single-phase system.
Features
- Ultrahigh current
- High DC voltage
- Open design optimizes heat dissipation
Applications
- Frequency converter
- Charge stations
- Photovoltaics
- Energy storage systems
Technical specifications
| DC current | 50 A | |
| Height | 55 mm | |
| DC resistance | 2.5 mΩ | |
| Measuring frequency | 1 MHz | |
| Version | high current choke | |
| Design | PCB mounting | |
| Tolerance | -30/+50 % | |
| Inductance | 24.3 mH |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 1 piece |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
