3-127-620 | SCHURTER
High current choke, radial, 8.2 mH, 10 A, 3-127-620
Unit Price (€ / pc.)
18.9686 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
18.97 € *
Price list
Quantity
Price per unit*
1 pcs.
18.9686 €
10 pcs.
17.4573 €
50 pcs.
16.2316 €
100 pcs.
14.7560 €
*incl. VAT plus shipping costs
Subject to prior sale

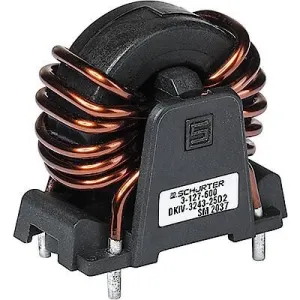

High current choke, 3-127-620, Schurter
Compensated high current choke, 1-phase, THT terminal with flange for mounting onto printed circuit board.
Features
- Compact size and light weight
- Small footpring on PCB
- Open design optimizes heat dissipation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 35 mm | |
| Inductance | 8.2 mH | |
| Version | high current choke | |
| DC resistance | 10 mΩ | |
| Tolerance | -30/+50 % | |
| Width | 26.2 mm | |
| Design | radial | |
| Length | 36 mm | |
| DC current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
| Original Packaging | Carton with 40 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
