KP01.1013.01 | SCHURTER

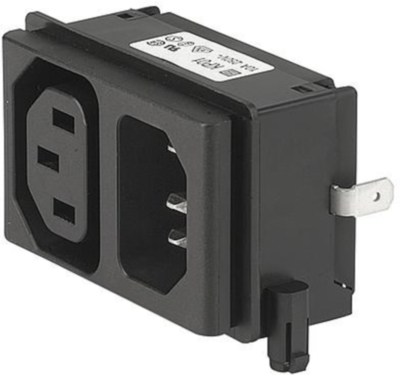

Combination element plug/socket C14 + F, 3 pole, snap-in, PCB connection, black, KP01.1013.01
Unit Price (€ / pc.)
6.9972 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
7.00 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9972 €
10 pcs.
6.3665 €
50 pcs.
5.8548 €
100 pcs.
5.2717 €
*incl. VAT plus shipping costs
Subject to prior sale
Distribution unit, KP01.1013.01, SCHURTER
IEC Appliance inlet C14 with appliance outlet F.
Features
- Panel mountable
- 2 Functions
- All single elements are already wired
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 70 °C | |
| Panel thickness | 3 mm | |
| Fuse holder present | No | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Connection | PCB connection | |
| Power switch available | No | |
| Design | angled | |
| Version | plug/socket | |
| Pin number | 3 pole | |
| Type of locking | No | |
| IEC designation | C14 + F | |
| Switch illuminated | No | |
| Rated current UL/CSA | 15 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | combination element | |
| Rated current IEC | 10 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
