GSP2.9103.15 | SCHURTER

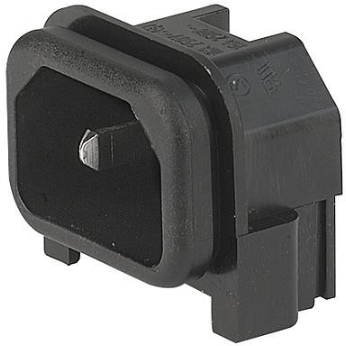

Panel plug C14, 3 pole, screw mounting, plug-in connection, black, GSP2.9103.15
Unit Price (€ / pc.)
1.8326 € *
Available: 50 pcs.
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.6898 €
50 pcs.
1.5351 €
100 pcs.
1.3804 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, GSP2.9103.15, SCHURTER
IEC Appliance inlet C14, Sandwich mounting, PCB-terminals.
Features
- Panel mountable
- For PCB mounting
- Housing material: Thermoplastic, UL 94V-0
- V-Lock notch standard
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 70 °C | |
| Rated voltage IEC | 250 V | |
| Design | angled | |
| Rated voltage UL/CSA | 250 V | |
| Product type | panel plug | |
| Panel thickness | 2.5 mm | |
| Power switch available | No | |
| Rated current IEC | 10 A | |
| Connection | plug-in connection | |
| Colour | black | |
| Switch illuminated | No | |
| Type of locking | Yes | |
| Line filter present | No | |
| Assembly | screw mounting | |
| Pin number | 3 pole | |
| Rated current UL/CSA | 15 A | |
| Fuse holder present | No | |
| IEC designation | C14 |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
