GSF1.2212.01 | SCHURTER

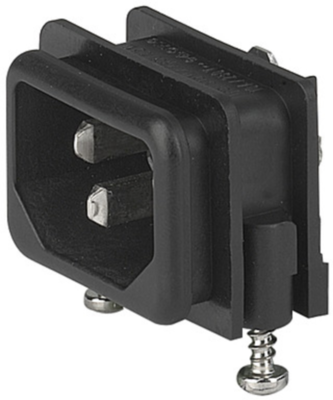

Combination element plug C14, 3 pole, screw mounting, PCB connection, black, GSF1.2212.01
Order No.: 59P9373
EAN: 4099889872460
MPN:
GSF1.2212.01
This item is no longer available.
As an alternative, we recommend the following item:
Combination element plug C14, 3 pole, snap-in, PCB connection, black, GSF1.2202.01
Order No.: 59P9366
Manufacturer: SCHURTER
per pc. 2.0706 € *
Plug, GSF1.2212.01, SCHURTER
IEC Appliance inlet C14 with fuseholder.
Features
- Panel mountable
- 2 Functions
- All single elements are already wired
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 70 °C | |
| Fuse holder present | Yes | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Connection | PCB connection | |
| Power switch available | No | |
| Design | angled | |
| Version | plug | |
| Pin number | 3 pole | |
| Type of locking | No | |
| IEC designation | C14 | |
| Switch illuminated | No | |
| Rated current UL/CSA | 10 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | combination element | |
| Rated current IEC | 10 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
