EF11.4031.1010.03 | SCHURTER

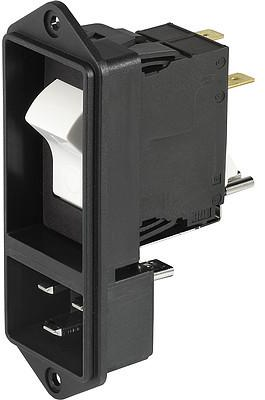

Panel plug C20, 2 pole, screw mounting, plug-in connection, black, EF11.4031.1010.03
Order No.: 59P0647
EAN: 4099891584665
MPN:
EF11.4031.1010.03
EF11-A324R160C0-000-441-009
Series: EF11
Unit Price (€ / pc.)
32.0586 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
IEC Appliance Inlet C20, EF11.4031.1010.03, SCHURTER
Features
- Protection class I
- Circuit breaker type TA45
- Quick connect terminals 6.3 x 0.8 mm
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Switch illuminated | Yes | |
| Colour | black | |
| Number of poles switch | 2 pole | |
| Pin temperature | 70 °C | |
| Type of locking | Yes | |
| Rated current UL/CSA | 20 A | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 16 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C20 | |
| Fuse holder present | No | |
| Pin number | 2 pole | |
| Version | panel plug | |
| Design | straight | |
| Power switch available | Yes | |
| Connection | plug-in connection | |
| Line filter present | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
