DF11.1477.0012.02 | SCHURTER

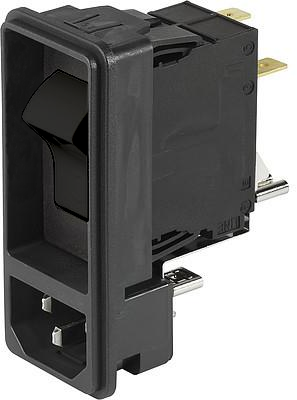

Combination element C14, snap-in mounting, plug-in connection, black, DF11.1477.0012.02
Order No.: 59P0354
EAN: 4099891583897
MPN:
DF11.1477.0012.02
DF11-ABTBH100C0-000-111-200
Series: DF11
Unit Price (€ / pc.)
27.4414 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
27.44 € *
Price list
Quantity
Price per unit*
1 pcs.
27.4414 €
10 pcs.
25.2518 €
25 pcs.
23.2288 €
50 pcs.
21.1344 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC Combination element C14, DF11.1477.0012.02, SCHURTER
Features
- Quick connect terminals 6.3 x 0.8 mm
- Circuit breaker type TA45
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I or II
Technical specifications
| Rated current UL/CSA | 15 A | |
| Version | combination element | |
| Rated voltage UL/CSA | 250 V | |
| IEC designation | C14 | |
| Connection | plug-in connection | |
| Switch illuminated | No | |
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Line filter present | No | |
| Design | straight | |
| Swich colour | black | |
| Type of locking | No | |
| Panel thickness | 1.5 mm | |
| Colour | black | |
| Number of poles switch | 2 pole | |
| Assembly | snap-in mounting | |
| Rated current IEC | 10 A | |
| Rated voltage IEC | 250 V | |
| Power switch available | Yes |
Download
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
