DD21.0124.1111 | SCHURTER

Combination element plug C14, 3 pole, screw mounting, plug-in connection, black, DD21.0124.1111

Order No.: 59P8780
EAN: 4099889871562
MPN:
DD21.0124.1111
Series: DD21
DD21.0124.1111 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
14.8036 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1,184.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
80 pcs.
14.8036 €

Plug, DD21.0124.1111, SCHURTER

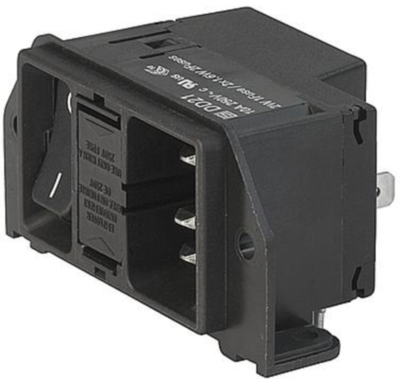

IEC Appliance inlet C14 with line switch 2-pole, Fuseholder 2-pole, for PCB mounting.

Features

  • Panel mountable
  • 3 Functions
  • Fuseholder for fuse links
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Number of poles fuse holder 2 pole
Pin temperature 70 °C
Panel thickness 3 mm
Fuse holder present Yes
Assembly screw mounting
Rated voltage UL/CSA 125 V
Connection plug-in connection
Power switch available Yes
Number of poles switch 2 pole
Design straight
Version plug
Pin number 3 pole
Type of locking Yes
IEC designation C14
Switch illuminated Yes
Rated current UL/CSA 10 A
Rated voltage IEC 250 V
Line filter present No
Product type combination element
Swich colour green
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin CZ
Original Packaging Carton with 40 pieces
Customs tariff number 85366990
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
