DD11.0124.1111 | SCHURTER
Combination element plug C14, 3 pole, screw mounting, plug-in connection, black, DD11.0124.1111
Unit Price (€ / pc.)
15.3272 € *
Available: 62 pcs.
Next delivery: 100 pcs. on 2025-09-12
Total Price:
15.33 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3272 €
10 pcs.
13.4946 €
50 pcs.
12.5664 €
200 pcs.
11.8286 €
400 pcs.
11.3764 €
*incl. VAT plus shipping costs
Subject to prior sale

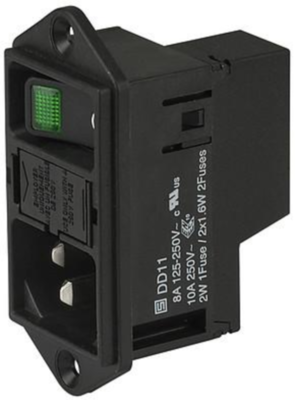

Plug, DD11.0124.1111, SCHURTER
IEC Appliance inlet C14 with line switch 2-pole, Fuseholder 2-pole.
Features
- Panel mountable
- 3 Functions
- Fuseholder for fuse links
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Line filter present | No | |
| Fuse holder present | Yes | |
| Rated current IEC | 10 A | |
| Switch illuminated | Yes | |
| Version | plug | |
| Number of poles fuse holder | 2 pole | |
| Rated voltage IEC | 250 V | |
| Rated current UL/CSA | 10 A | |
| Rated voltage UL/CSA | 250 V | |
| Assembly | screw mounting | |
| Type of locking | Yes | |
| Panel thickness | 8 mm | |
| Swich colour | green | |
| Colour | black | |
| Pin number | 3 pole | |
| Number of poles switch | 2 pole | |
| Connection | plug-in connection | |
| IEC designation | C14 | |
| Product type | combination element | |
| Power switch available | Yes | |
| Pin temperature | 70 °C | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
