DC21.0021.1161 | SCHURTER
Combination element plug C14, 3 pole, screw mounting, PCB connection, black, DC21.0021.1161
Unit Price (€ / pc.)
   11.9714 €  *
   Standard delivery time from the manufacturer is: 15 Weeks
 Total Price:
  11.97 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 11.9714 €
 10 pcs.
 10.8885 €
 50 pcs.
 9.8056 €
 100 pcs.
 8.8179 €
  *incl. VAT plus shipping costs
  Subject to prior sale

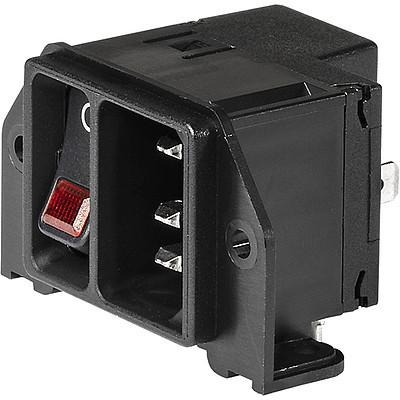

 Plug, DC21.0021.1161, SCHURTER
IEC Appliance inlet C14 with line switch 2-pole.
Features
- Panel mountable
- 2 Functions
- All single elements are already wired
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | Yes | |
| Number of poles switch | 2 pole | |
| Colour | black | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 15 A | |
| Fuse holder present | No | |
| IEC designation | C14 | |
| Connection | PCB connection | |
| Product type | combination element | |
| Pin number | 3 pole | |
| Version | plug | |
| Type of locking | No | |
| Rated current IEC | 10 A | |
| Line filter present | No |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 40 pieces |
| Country of origin | CH |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
