CMF1.1131.12 | SCHURTER
Combination element plug C8, 2 pole, screw mounting, PCB connection, black, CMF1.1131.12
Not suitable for new designs - Last time buy manufacturer: 03.30.2025
Unit Price (€ / pc.)
5.8905 € *
Available: 59 pcs.
Total Price:
5.89 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8905 €
10 pcs.
5.4145 €
50 pcs.
4.9385 €
100 pcs.
4.4268 €
*incl. VAT plus shipping costs
Subject to prior sale

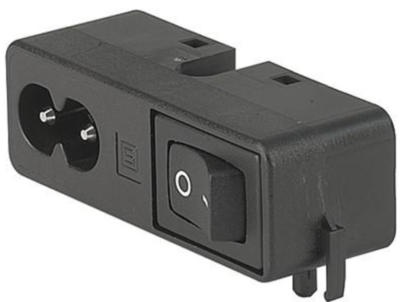

Plug, CMF1.1131.12, SCHURTER
IEC Appliance inlet C8 with line switch 1-pole.
Features
- Panel mountable
- 2 Functions
- For PCB mounting
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Panel thickness | 2 mm | |
| Number of poles switch | 1 pole | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Rated current IEC | 2.5 A | |
| IEC designation | C8 | |
| Fuse holder present | No | |
| Line filter present | No | |
| Product type | combination element | |
| Type of locking | No | |
| Rated current UL/CSA | 7 A | |
| Rated voltage UL/CSA | 125 V | |
| Assembly | screw mounting | |
| Design | straight | |
| Pin temperature | 70 °C | |
| Colour | black | |
| Connection | PCB connection | |
| Swich colour | black | |
| Pin number | 2 pole | |
| Rated voltage IEC | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
