9009.0111 | SCHURTER

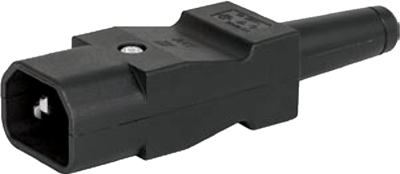

Plug E, 3 pole, cable assembly, screw connection, 1.5 mm², black, 9009.0111
Unit Price (€ / pc.)
8.2348 € *
Available: 677 pcs.
Total Price:
8.23 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2348 €
10 pcs.
7.2352 €
50 pcs.
6.7354 €
200 pcs.
6.3427 €
400 pcs.
6.1047 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC cord connectors, type Schurter 9009.
To IEC/EN 60320-1, for cable mounting, pin temperatures up to +70 °C; Connection: screw terminals, 2-pole + ground contact, 10 A/250 VAC (ENEC), 15 A/250 VAC (UL/CSA). Degree of protection (at the front): IP 20 to IEC 60529, suitable for devices with safety class I to IEC 61140. Housing material: polyamide (PA6), UL 94 V-0. Certifications: ENEC, UL, CSA. Note: The versions for 8.0 mm diameter can be cut off to suit a 10 mm cable diameter.

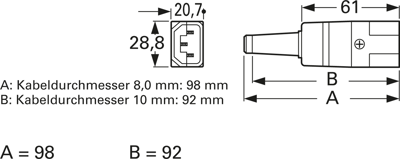

Technical attributes (type, color, for cable diameter): 9009.0111, black, 8.0 (10) mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 15 A | |
| Cable cross-section | 1.5 mm² | |
| Connection | screw connection | |
| Assembly | cable assembly | |
| Fuse holder present | No | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Design | straight | |
| Rated current IEC | 10 A | |
| Cable diameter | 10 mm | |
| IEC designation | E | |
| Type of locking | No | |
| Switch illuminated | No | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
