6610.3016.03 | SCHURTER

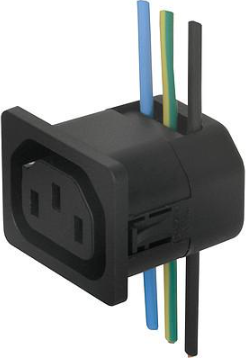

Panel socket F, 3 pole, snap-in, IDC connection, 1.0 mm², black, 6610.3016.03

Order No.: 59P7975
EAN: 4099889870886
MPN:
6610.3016.03
Series: 6610
6610.3016.03 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
1.4875 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
1.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4875 €

Plug, 6610.3016.03, SCHURTER

IEC Appliance outlet F, Snap-in mounting, Front side, IDC terminals.

Features

  • Panel mountable
  • IDC terminals for solid wires
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Pin temperature 70 °C
Panel thickness 2.5 mm
Fuse holder present No
Assembly snap-in
Rated voltage UL/CSA 250 V
Connection IDC connection
Power switch available No
Pin number 3 pole
Type of locking No
IEC designation F
Switch illuminated No
Rated current UL/CSA 15 A
Rated voltage IEC 250 V
Line filter present No
Product type panel socket
Rated current IEC 10 A
Colour black
Cable cross-section 1.0 mm²
Logistics
Property Value
Country of origin CH
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
