6600.4320 | SCHURTER

Panel socket F, 3 pole, snap-in, plug-in connection, black, 6600.4320

Order No.: 41F1820
EAN: 4099889863567
MPN:
6600.4320
Series: 6600-4

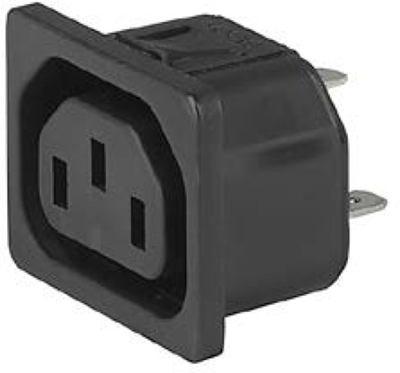

6600.4320 SCHURTER Device Connectors Image 1

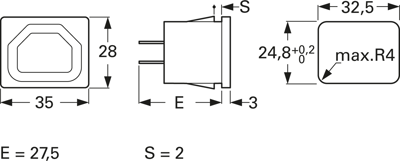

6600.4320 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.6184 € *
Available: 155 pcs.
Total Price:
1.62 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6184 €
50 pcs.
1.3804 €
100 pcs.
1.3209 €
200 pcs.
1.2733 €
1000 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket, 6600.4320, SCHURTER

IEC Appliance outlet F, Snap-in mounting, Front side, Quick-connect terminals.

Features

  • Panel mountable
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Pin temperature 70 °C
Panel thickness 2 mm
Fuse holder present No
Assembly snap-in
Rated voltage UL/CSA 250 V
Connection plug-in connection
Power switch available No
Design straight
Pin number 3 pole
Type of locking No
IEC designation F
Switch illuminated No
Rated current UL/CSA 15 A
Rated voltage IEC 250 V
Line filter present No
Product type panel socket
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin CZ
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
