6600.4230 | SCHURTER

Panel socket F, 3 pole, snap-in, plug-in connection, black, 6600.4230

Order No.: 41F1817
EAN: 4099889863529
MPN:
6600.4230
Series: 6600-4

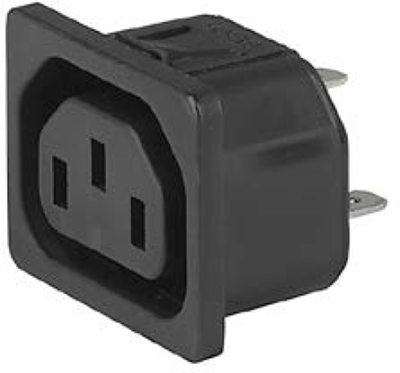

6600.4230 SCHURTER Device Connectors Image 1

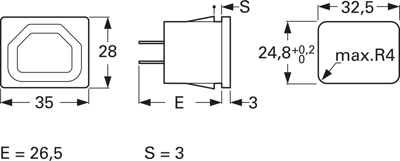

6600.4230 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.1186 €

Socket, 6600.4230, SCHURTER

IEC Appliance outlet F, Snap-in mounting, Front side, Quick-connect terminals.

Features

  • Panel mountable
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Switch illuminated No
Assembly snap-in
Rated voltage UL/CSA 250 V
Rated current UL/CSA 15 A
Panel thickness 3 mm
Pin temperature 70 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type panel socket
Line filter present No
IEC designation F
Rated current IEC 10 A
Type of locking No
Connection plug-in connection
Power switch available No
Logistics
Property Value
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
