6600.4120 | SCHURTER

Built-in appliance socket F, 3 pole, snap-in, solder connection, black, 6600.4120

Order No.: 41F1806
EAN: 4099889863413
MPN:
6600.4120
Series: 6600-4

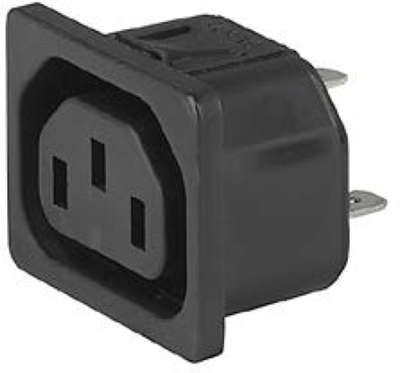

6600.4120 SCHURTER Device Connectors Image 1
6600.4120 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
1.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.1186 €

Socket, 6600.4120, SCHURTER

IEC Appliance outlet F, Snap-in mounting, Front side, Solder terminals.

Features

  • Panel mountable
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Design straight
Panel thickness 2 mm
Pin temperature 70 °C
Rated voltage UL/CSA 250 V
Power switch available No
Rated voltage IEC 250 V
Rated current UL/CSA 15 A
IEC designation F
Line filter present No
Fuse holder present No
Rated current IEC 10 A
Connection solder connection
Colour black
Switch illuminated No
Version socket
Assembly snap-in
Type of locking No
Pin number 3 pole
Logistics
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin CZ
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
