6432.0153.25 | SCHURTER

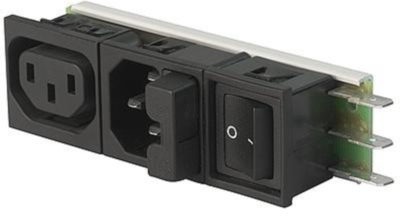

Combination element C14 + F, 3 pole, snap-in, plug-in connection, black, 6432.0153.25
This item is no longer available.
As an alternative, we recommend the following item:
Combination element C14 + F, 3 pole, snap-in, plug-in connection, black, 6424.0253.15
Order No.: 59P7914
Manufacturer: SCHURTER
per pc. 18.0047 € *
Distribution unit, 6432.0153.25, SCHURTER
IEC Appliance inlet C14 + F with modular extended components.
Features
- Panel mountable
- Fuseholder for fuse links
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | Steckanschluss | |
| Version | Stecker/Buchse | |
| Design | gerade | |
| Swich colour | schwarz | |
| Colour | schwarz | |
| IEC designation | C14 + F | |
| Assembly | Snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 10 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Panel thickness | 2.5 mm | |
| Number of poles switch | 2-polig | |
| Number of poles fuse holder | 1-polig | |
| Pin number | 3-polig | |
| Fuse holder present | Yes | |
| Pin temperature | 70 °C | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Karton mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
