6424.0253.20 | SCHURTER

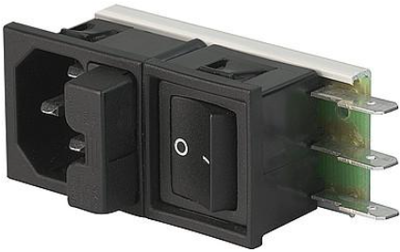

Combination element plug/socket C14 + F, 3 pole, snap-in, plug-in connection, black, 6424.0253.20
Unit Price (€ / pc.)
18.6354 € *
Standard delivery time from the manufacturer is: 17 Weeks
Distribution unit, 6424.0253.20, SCHURTER
IEC Appliance inlet C14 + F with modular extended components.
Features
- Panel mountable
- Fuseholder for fuse links
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | snap-in | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Fuse holder present | Yes | |
| Panel thickness | 2 mm | |
| Rated current IEC | 10 A | |
| Version | plug/socket | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Number of poles switch | 2 pole | |
| Design | straight | |
| Colour | black | |
| Rated voltage UL/CSA | 250 V | |
| Swich colour | black | |
| Connection | plug-in connection | |
| IEC designation | C14 + F | |
| Rated current UL/CSA | 10 A | |
| Number of poles fuse holder | 2 pole | |
| Product type | combination element |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
