6422.0053.30 | SCHURTER

Combination element C14 + F, 3 pole, snap-in, plug-in connection, black, 6422.0053.30

Order No.: 59P7886
EAN: 4099889870022
MPN:
6422.0053.30
Series: Felcom 64
SCHURTER
6422.0053.30 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
15.5652 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
15.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
15.5652 €

Distribution unit, 6422.0053.30, SCHURTER

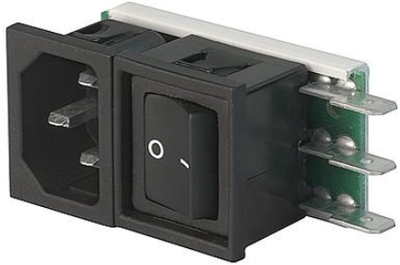

IEC Appliance inlet C14 + F with modular extended components.

Features

  • Panel mountable
  • Fuseholder for fuse links
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Connection plug-in connection
Version plug/socket
Design straight
Swich colour black
Colour black
IEC designation C14 + F
Assembly snap-in
Rated voltage IEC 250 V
Rated voltage UL/CSA 250 V
Rated current IEC 10 A
Rated current UL/CSA 10 A
Line filter present No
Switch illuminated No
Power switch available Yes
Panel thickness 3 mm
Number of poles switch 2 pole
Pin number 3 pole
Fuse holder present No
Pin temperature 70 °C
Type of locking No
Logistics
Country of origin CH
Customs tariff number 85366990
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
