6250.5530 | SCHURTER
Combination element C14, 3 pole, snap-in, PCB connection, black, 6250.5530
Unit Price (€ / pc.)
3.6057 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

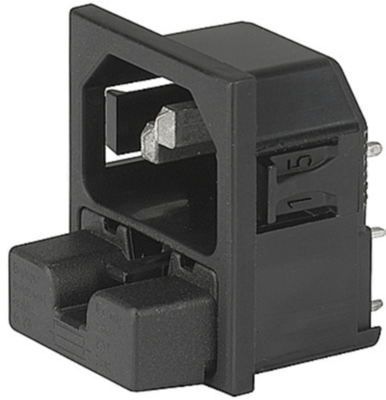

Plug, 6250.5530, SCHURTER
IEC Appliance inlet C14 with fuseholder 1-pole, mates to Felcom.
Features
- 2 Functions
- Fuseholder for fuse links
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Switch illuminated | No | |
| Colour | black | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current UL/CSA | 10 A | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C14 | |
| Fuse holder present | Yes | |
| Panel thickness | 3 mm | |
| Pin number | 3 pole | |
| Version | plug | |
| Design | straight | |
| Power switch available | No | |
| Connection | PCB connection | |
| Number of poles fuse holder | 1 pole | |
| Line filter present | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
