6202.2200 | SCHURTER
Combination element plug C18, 2 pole, screw mounting, plug-in connection, black, 6202.2200
Unit Price (€ / pc.)
1.9040 € *
Standard delivery time from the manufacturer is: 10 Weeks
Plug, 6202.2200, SCHURTER

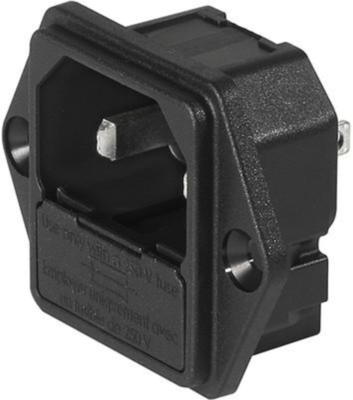

IEC Appliance Inlet C18 with fuseholder 1-pole.
Features
- Panel mountable
- V-Lock notch standard
- Fuseholder for fuse links
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of poles fuse holder | 1 pole | |
| Pin temperature | 70 °C | |
| Panel thickness | 6 mm | |
| Fuse holder present | Yes | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Connection | plug-in connection | |
| Power switch available | No | |
| Design | straight | |
| Version | plug | |
| Pin number | 2 pole | |
| Type of locking | Yes | |
| IEC designation | C18 | |
| Switch illuminated | No | |
| Rated current UL/CSA | 10 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | combination element | |
| Rated current IEC | 10 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
