6200.4320 | SCHURTER

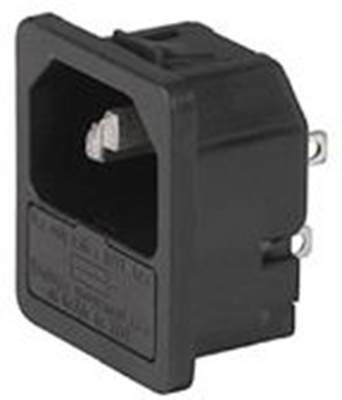

Combination element plug C14, 3 pole, snap-in, plug-in connection, black, 6200.4320
Unit Price (€ / pc.)
2.8441 € *
Available: 24 pcs.
Next delivery: 50 pcs. on 2025-12-19
Total Price:
2.84 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8441 €
10 pcs.
2.5109 €
100 pcs.
2.2015 €
200 pcs.
2.1182 €
1000 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 6200.4320, SCHURTER
IEC Appliance inlet C14 with fuseholder 1-pole, wired.
Features
- Panel mountable
- V-Lock notch standard
- Fuseholder for fuselinks
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of poles fuse holder | 1 pole | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 10 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Pin number | 3 pole | |
| Colour | black | |
| Design | straight | |
| Power switch available | No | |
| Rated current IEC | 10 A | |
| Switch illuminated | No | |
| Panel thickness | 2 mm | |
| Fuse holder present | Yes | |
| Pin temperature | 70 °C | |
| Product type | combination element | |
| Version | plug | |
| Type of locking | Yes | |
| IEC designation | C14 | |
| Connection | plug-in connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
