6183.0002 | SCHURTER

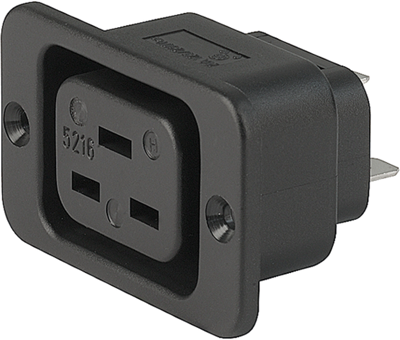

Panel socket J, 3 pole, screw mounting, plug-in connection, black, 6183.0002
Unit Price (€ / pc.)
   5.3669 €  *
   Available: 320 pcs.
 Total Price:
  5.37 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 5.3669 €
 10 pcs.
 4.8314 €
 50 pcs.
 4.4030 €
 100 pcs.
 3.9627 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 IEC appliance outlets with horizontal contacts, type Schurter/O. Heil 5216.
Ideal for high currents to T 70 °C; Housing: polyamide, UL 94 V-0, with countersunk mounting holes for screw mounting. 2-pole + PE, 16 A/250 V (UL/CSA 21 A/250 V). Design to IEC/EN 60320-2-2. With 6.3 mm tab terminals. Certifications: VDE, UL, CSA.
Technical attributes (type, connections, color): 5216-X-9990-A-1, black
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | No | |
| Colour | black | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 20 A | |
| Fuse holder present | No | |
| Design | straight | |
| IEC designation | J | |
| Connection | plug-in connection | |
| Switch illuminated | No | |
| Product type | panel socket | |
| Pin number | 3 pole | |
| Type of locking | No | |
| Rated current IEC | 16 A | |
| Line filter present | No |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
