6182.0047 | SCHURTER

Panel socket F, 3 pole, screw mounting, solder connection, black, 6182.0047

Order No.: 41F1064
EAN: 4099891579715
MPN:
6182.0047
5098-X-1190-A-1
Series: 5098
6182.0047 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
2.3562 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.3562 €

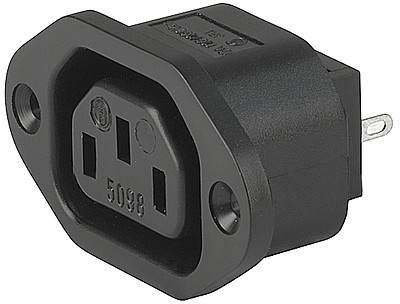

IEC Appliance outlet, 6182.0047, SCHURTER

Flange with countersunk holes suitable for appliances with protection class I.

Technical specifications
Filter Property Value
Pin temperature 70 °C
Fuse holder present No
Assembly screw mounting
Rated voltage UL/CSA 250 V
Connection solder connection
Power switch available No
Design straight
Pin number 3 pole
Type of locking No
IEC designation F
Switch illuminated No
Rated current UL/CSA 15 A
Rated voltage IEC 250 V
Line filter present No
Product type panel socket
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
