6182.0046 | SCHURTER

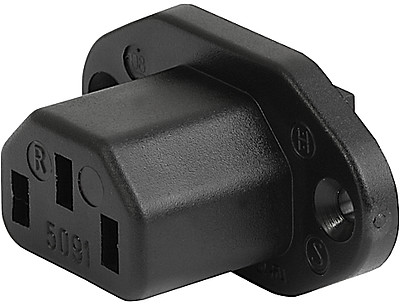

Panel socket F, 3 pole, screw mounting, solder connection, black, 6182.0046
Unit Price (€ / pc.)
4.1412 € *
Standard delivery time from the manufacturer is: 10 Weeks
IEC Appliance outlet, 6182.0046, SCHURTER
IEC Appliance socket outlet with 1 Function suitable for appliances with protection class I.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Connection | solder connection | |
| Power switch available | No | |
| Design | straight | |
| Pin number | 3 pole | |
| Type of locking | No | |
| IEC designation | F | |
| Switch illuminated | No | |
| Rated current UL/CSA | 15 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | panel socket | |
| Rated current IEC | 10 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
