6182.0026 | SCHURTER

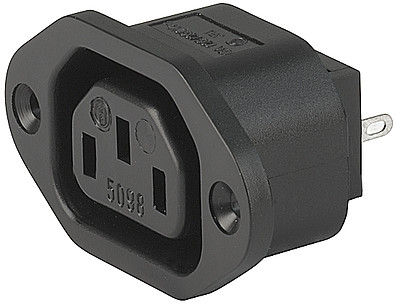

Panel socket H, 2 pole, screw mounting, solder connection, gray, 6182.0026
Order No.: 41F1065
EAN: 4099891579722
MPN:
6182.0026
5098-B-1100-B-1
This item is no longer available.
As an alternative, we recommend the following item:

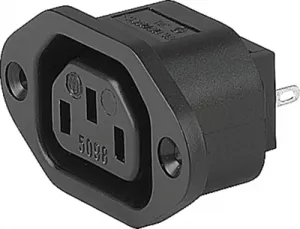

Panel socket F, 3 pole, screw mounting, solder connection, black, 6182.0028
Order No.: 41F180
Manufacturer: SCHURTER
per pc. 3.3915 € *
IEC Appliance outlet, 6182.0026, SCHURTER
Flange with countersunk holes suitable for appliances with protection class II.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Pin number | 2 pole | |
| IEC designation | H | |
| Colour | gray | |
| Connection | solder connection | |
| Assembly | screw mounting | |
| Design | straight | |
| Power switch available | No | |
| Switch illuminated | No | |
| Fuse holder present | No | |
| Line filter present | No | |
| Type of locking | No | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Pin temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
