6182.0001 | SCHURTER

Panel socket F, 3 pole, screw mounting, solder connection, black, 6182.0001

Order No.: 41F1918
EAN: 4099889863697
MPN:
6182.0001
5091-X-1110-A-1
Series: 5091

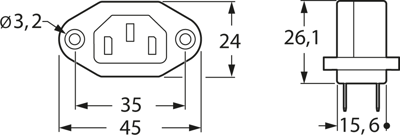

6182.0001 SCHURTER Device Connectors Image 1

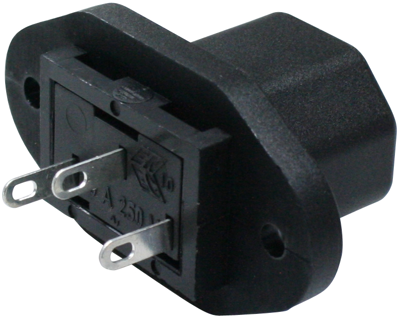

6182.0001 SCHURTER Device Connectors Image 2

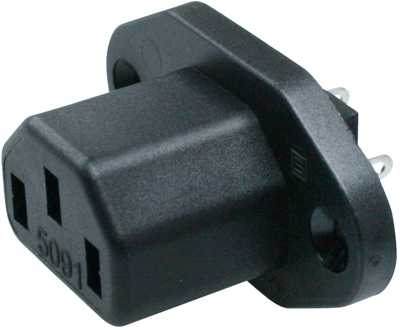

6182.0001 SCHURTER Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.3915 € *
Available: 100 pcs.
Next delivery: 100 pcs. on 2025-09-05
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
2.9631 €
100 pcs.
2.6061 €
200 pcs.
2.5109 €
1000 pcs.
2.3205 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC appliance outlets, surface-mount, type Schurter/O. Heil 5091.

Up to T 70 °C; Housing: polyamide, UL 94 V-0, with countersunk mounting holes, 2-pole + PE, 10 A/250 V (UL/CSA 15 A/250 V), design to IEC/EN 60320-2-2. Certifications: VDE, Semko, UL, CSA.

Technical attributes (type, connections, color): 5091–X–1110–A–1, solder terminals, black

Technical specifications
Filter Property Value
Design straight
Pin number 3 pole
Rated voltage IEC 250 V
Rated voltage UL/CSA 250 V
Rated current UL/CSA 15 A
Type of locking No
Colour black
Switch illuminated No
Pin temperature 70 °C
Connection solder connection
Product type panel socket
IEC designation F
Power switch available No
Rated current IEC 10 A
Line filter present No
Fuse holder present No
Assembly screw mounting
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
