6180.0006 | SCHURTER

Panel socket D, 2 pole, insert mounting, solder connection, black, 6180.0006

Order No.: 41F416
EAN: 4099889864199
MPN:
6180.0006
5086-X-1100-A-5
Series: 5086

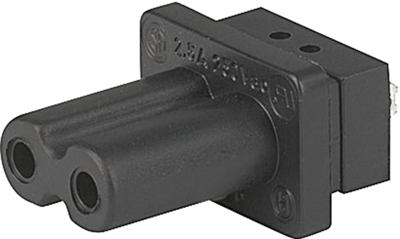

6180.0006 SCHURTER Device Connectors Image 1

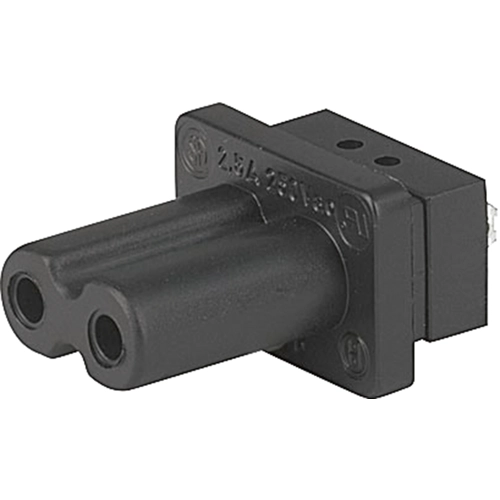

6180.0006 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.7493 €

IEC appliance outlets, drop-in, type Schurter/O. Heil 5086.

To IEC/EN 60320-2-2, pin temperatures up to +70° C, 2-pole, 2.5 A/250 VAC (VDE), 4.0 A/250 VAC (UL/CSA); Degree of protection (at the front): IP 20 to IEC 60529, suitable for devices with safety class II to IEC 61140. Housing material: polyamide (PA6), UL 94 V-0. Color: black. Certifications: VDE, UL, CSA.

Technical attributes (type, connections): 5086-X-1100-A-5, solder terminals

Technical specifications
Filter Property Value
Switch illuminated No
Assembly insert mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 2.5 A
Pin temperature 70 °C
Fuse holder present No
Design T-shape
Colour black
Pin number 2 pole
Rated voltage IEC 250 V
Product type panel socket
Line filter present No
IEC designation D
Rated current IEC 2.5 A
Type of locking No
Connection solder connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
