6173.0018 | SCHURTER
Panel plug C22, 3 pole, snap-in, plug-in connector 4.8 x 0.8, black, 6173.0018
Unit Price (€ / pc.)
2.023 € *
Standard delivery time from the manufacturer is: 10 Weeks

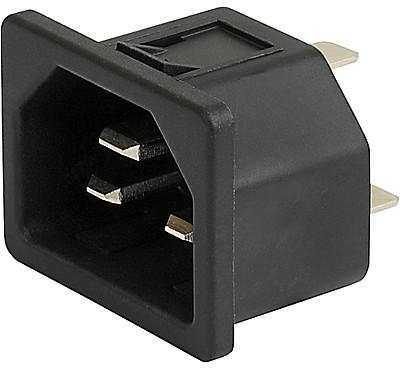

IEC appliance inlet C22, 6173.0018, SCHURTER
Features
- Safety of electrical appliances for household and similar purposes
- For very hot conditions 155°C
- Protection class I
Applications
- Suitable for appliances with protection class I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Panel thickness | 3 mm | |
| Switch illuminated | No | |
| Power switch available | No | |
| Rated current IEC | 16 A | |
| IEC designation | C22 | |
| Fuse holder present | No | |
| Line filter present | No | |
| Product type | panel plug | |
| Type of locking | No | |
| Rated current UL/CSA | 20 A | |
| Rated voltage UL/CSA | 250 V | |
| Assembly | snap-in | |
| Design | straight | |
| Pin temperature | 155 °C | |
| Colour | black | |
| Connection | plug-in connector 4.8 x 0.8 | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
