6173.0001 | SCHURTER

Panel plug C22, 3 pole, screw mounting, solder connection, black, 6173.0001

Order No.: 59P7802
EAN: 4099889869248
MPN:
6173.0001
1681-X-DDD0-A-100-00
Series: 1681
6173.0001 SCHURTER Device Connectors

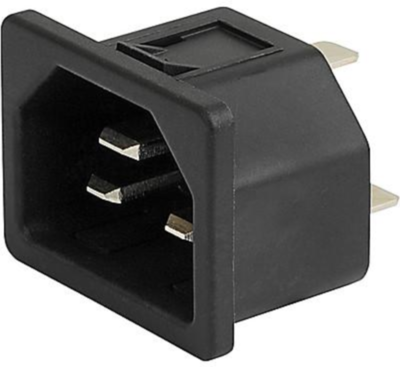

Image may differ
Unit Price (€ / pc.)
1.9635 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.9635 €

Plug, 6173.0001, SCHURTER

IEC Appliance inlet C22, for very hot conditions 155°C, Screw-on mounting, Front side.

Features

  • Panel mountable
  • 1 Function
  • Housing material: PA6, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Switch illuminated No
Assembly screw mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 20 A
Pin temperature 155 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type panel plug
Line filter present No
IEC designation C22
Rated current IEC 16 A
Type of locking No
Connection solder connection
Power switch available No
Logistics
Property Value
Original Packaging Carton with 50 pieces
MSL MSL 1
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
