6163.0024 | SCHURTER

Panel plug C20, 3 pole, snap-in, solder connection, black, 6163.0024

Order No.: 59P0949
EAN: 4099891585129
MPN:
6163.0024
1624-X-3330-A-4250
Series: 1624
6163.0024 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
2.9512 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.9512 €

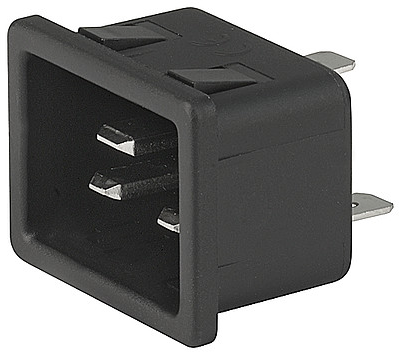

IEC appliance inlet C20, 6163.0024, SCHURTER

IEC appliance inlet C20, Snap-in mounting, Front side.

Technical specifications
Filter Property Value
Pin temperature 70 °C
Panel thickness 2.5 mm
Fuse holder present No
Assembly snap-in
Rated voltage UL/CSA 250 V
Connection solder connection
Power switch available No
Design straight
Pin number 3 pole
Type of locking No
IEC designation C20
Switch illuminated No
Rated current UL/CSA 20 A
Rated voltage IEC 250 V
Line filter present No
Product type panel plug
Rated current IEC 16 A
Colour black
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
