6163.0018 | SCHURTER

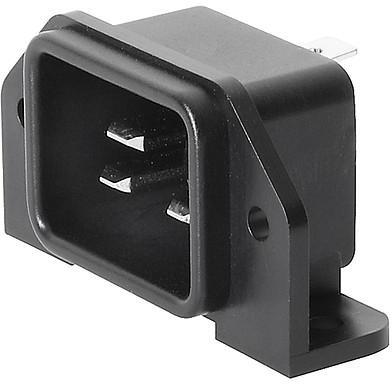

Panel plug C20, 3 pole, screw mounting, PCB connection, black, 6163.0018

Order No.: 41F2115
EAN: 4099889863901
MPN:
6163.0018
1601-X-4460-A-29
Series: 1601
6163.0018 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2372 €

Plug, 6163.0018, SCHURTER

IEC Appliance inlet C20, Screw-on mounting, Rear side, PCB-terminals.

Features

  • Panel mountable
  • For PCB mounting
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Switch illuminated No
Assembly screw mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 20 A
Panel thickness 4.2 mm
Pin temperature 70 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type panel plug
Line filter present No
IEC designation C20
Rated current IEC 16 A
Type of locking No
Connection PCB connection
Power switch available No
Logistics
Property Value
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
