6163.0011 | SCHURTER

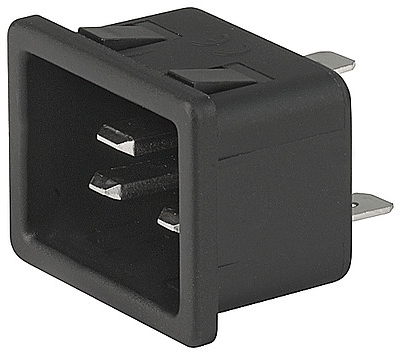

Panel plug C20, 3 pole, snap-in, solder connection, black, 6163.0011
Unit Price (€ / pc.)
2.9036 € *
Standard delivery time from the manufacturer is: 12 Weeks
IEC appliance inlet C20, 6163.0011, SCHURTER
IEC appliance inlet C20, Snap-in mounting, Front side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | No | |
| Colour | black | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 20 A | |
| Panel thickness | 2 mm | |
| Fuse holder present | No | |
| Design | straight | |
| IEC designation | C20 | |
| Connection | solder connection | |
| Switch illuminated | No | |
| Product type | panel plug | |
| Pin number | 3 pole | |
| Type of locking | No | |
| Rated current IEC | 16 A | |
| Line filter present | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
