6163.0009 | SCHURTER
Panel plug C20, 3 pole, screw mounting, screw connection, gray, 6163.0009
Order No.: 59P0944
EAN: 4099891585075
MPN:
6163.0009
1621-X-AAA0-B-100
This item is no longer available.
As an alternative, we recommend the following item:
Panel plug C20, 3 pole, screw mounting, plug-in connection, black, 6163.0005
Order No.: 59P7788
Manufacturer: SCHURTER
per pc. 2.4514 € *

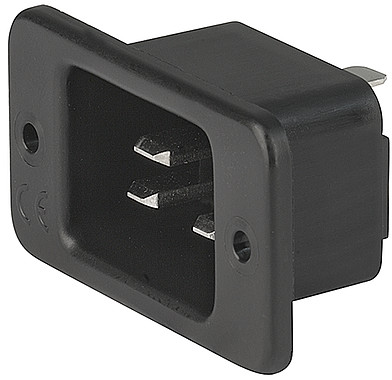

IEC appliance inlet C20, 6163.0009, SCHURTER
IEC appliance inlet C20, Screw-on mounting, Front side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Pin number | 3 pole | |
| IEC designation | C20 | |
| Colour | gray | |
| Connection | screw connection | |
| Assembly | screw mounting | |
| Design | straight | |
| Power switch available | No | |
| Switch illuminated | No | |
| Fuse holder present | No | |
| Line filter present | No | |
| Type of locking | No | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 20 A | |
| Pin temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
