6163.0004 | SCHURTER

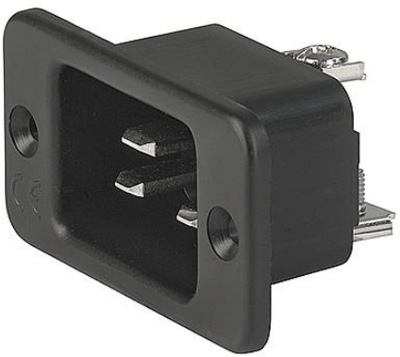

Panel plug C20, 3 pole, screw mounting, plug-in connection, black, 6163.0004
Unit Price (€ / pc.)
3.9508 € *
Available: 4 pcs.
Next delivery: 100 pcs. on 2025-09-05
Total Price:
3.95 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9508 €
10 pcs.
3.4867 €
100 pcs.
3.0702 €
200 pcs.
2.9274 €
1000 pcs.
2.6894 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC appliance inlets, with horizontal contacts, type Schurter/O. Heil 1621.
Ideal for high currents to T 70 °C; Housing: polyamide, UL 94 V-0, with countersunk mounting holes for screw mounting. 2-pole + PE, 16 A/250 V (UL/CSA 21 A/250 V). Design to IEC/EN 60320-1. Certifications: VDE, Semko, UL, CSA.
Technical attributes (type, connections, color): 1621–X–9990–A–1, tab terminals 6.3 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 20 A | |
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | black | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | panel plug | |
| Line filter present | No | |
| IEC designation | C20 | |
| Rated current IEC | 16 A | |
| Type of locking | No | |
| Connection | plug-in connection | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
