6162.0123 | SCHURTER

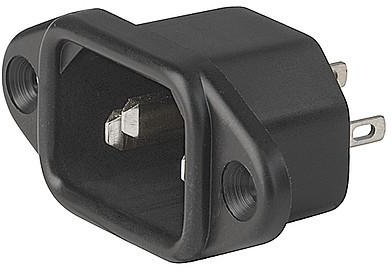

Panel plug C14, 3 pole, screw mounting, black, 6162.0123

Order No.: 41F943
EAN: 4099891581176
MPN:
6162.0123
6061-X-CCC0-A-1400
Series: 6061
6162.0123 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
1.4637 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4637 €

IEC Appliance Inlet, 6162.0123, SCHURTER

IEC Appliance Inlet C14, Screw-on mounting suitable for appliances with protection class I acc. to IEC 61140 and IP-Protection front side IP20 acc. to IEC 60529.

Technical specifications
Filter Property Value
Switch illuminated No
Assembly screw mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 15 A
Pin temperature 70 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type panel plug
Line filter present No
IEC designation C14
Rated current IEC 10 A
Type of locking No
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
