6162.0040 | SCHURTER

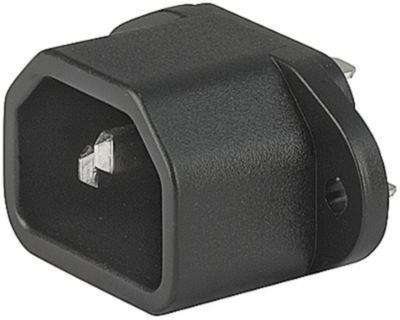

Panel plug C14, 3 pole, screw mounting, solder connection, black, 6162.0040

Order No.: 59P7744
EAN: 4099889868821
MPN:
6162.0040
6048-X-2220-A-20
Series: 6048
6162.0040 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
1.4994 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4994 €

Plug, 6162.0040, SCHURTER

IEC Appliance inlet C14, Screw-on Mounting, Solder terminals.

Features

  • Panel mountable
  • Housing material: PA6, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Pin temperature 70 °C
Fuse holder present No
Assembly screw mounting
Rated voltage UL/CSA 250 V
Connection solder connection
Power switch available No
Design straight
Pin number 3 pole
Type of locking No
IEC designation C14
Switch illuminated No
Rated current UL/CSA 15 A
Rated voltage IEC 250 V
Line filter present No
Product type panel plug
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin CZ
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
