6162.0036 | SCHURTER

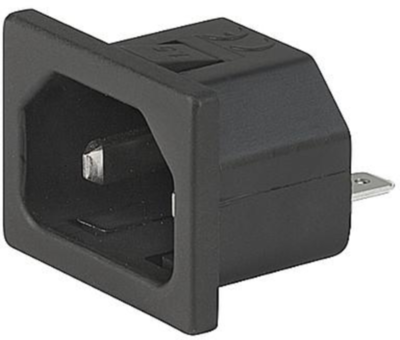

Panel plug C18, 2 pole, snap-in, plug-in connection, black, 6162.0036
Unit Price (€ / pc.)
1.7136 € *
Standard delivery time from the manufacturer is: 10 Weeks
Plug, 6162.0036, SCHURTER
IEC Appliance inlet C14, Snap-in mounting, Quick-connect terminals.
Features
- Panel mountable
- 1 Function
- Housing material: PA6, UL 94V-0
- Protection class: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Connection | plug-in connection | |
| Rated voltage IEC | 250 V | |
| Colour | black | |
| Fuse holder present | No | |
| Power switch available | No | |
| Pin number | 2 pole | |
| Panel thickness | 2 mm | |
| Switch illuminated | No | |
| Type of locking | Yes | |
| Design | straight | |
| Assembly | snap-in | |
| Pin temperature | 70 °C | |
| Product type | panel plug | |
| Rated current UL/CSA | 15 A | |
| IEC designation | C18 | |
| Line filter present | No | |
| Rated current IEC | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
