6162.0022 | SCHURTER

Panel plug C14, 3 pole, snap-in, plug-in connection, black, 6162.0022

Order No.: 59P7730
EAN: 4099889868685
MPN:
6162.0022
6010-X-8880-A-430
Series: 6010
6162.0022 SCHURTER Device Connectors

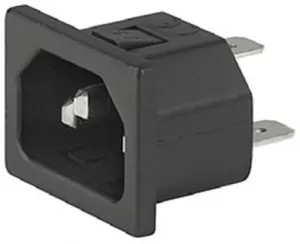

Image may differ
Unit Price (€ / pc.)
1.6779 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6779 €

Plug, 6162.0022, SCHURTER

IEC Appliance inlet C14, Snap-in mounting, Front Side, Quick-connect terminals.

Features

  • Panel mountable
  • Housing material: PA6, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Rated voltage UL/CSA 250 V
Rated voltage IEC 250 V
Pin number 3 pole
Power switch available No
Colour black
Rated current UL/CSA 15 A
Connection plug-in connection
Assembly snap-in
Fuse holder present No
Line filter present No
Pin temperature 70 °C
Panel thickness 3 mm
Design straight
Rated current IEC 10 A
IEC designation C14
Type of locking No
Switch illuminated No
Product type panel plug
Logistics
Property Value
MSL MSL 1
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
