6162.0013 | SCHURTER

Panel plug C14, 3 pole, snap-in, solder connection, black, 6162.0013

Order No.: 41F1336
EAN: 4099889861884
MPN:
6162.0013
6010-X-2220-A-415
Series: 6010

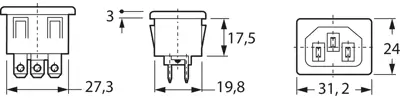

6162.0013 SCHURTER Device Connectors Image 1

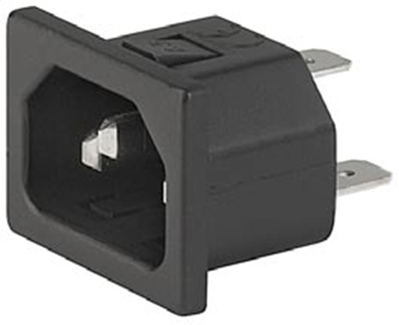

6162.0013 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.6541 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6541 €

IEC appliance inlets, type Schurter/O. Heil 6010.

To T 70 °C; housing: polyamide, UL 94 V-0, black, for snap-on mounting, 2-pole + PE, 10 A/250 V (UL/CSA 15 A/250 V), design to IEC/EN 60320-1. Certifications: ENEC, Semko, UL, CSA.

Technical attributes (type, for panel thickness, connection): 6010–X–2220–A–415, 1.5 mm, solder terminals

Technical specifications
Filter Property Value
Pin temperature 70 °C
Panel thickness 1.5 mm
Fuse holder present No
Assembly snap-in
Rated voltage UL/CSA 250 V
Connection solder connection
Power switch available No
Design straight
Pin number 3 pole
Type of locking No
IEC designation C14
Switch illuminated No
Rated current UL/CSA 15 A
Rated voltage IEC 250 V
Line filter present No
Product type panel plug
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
