6160.0090 | SCHURTER

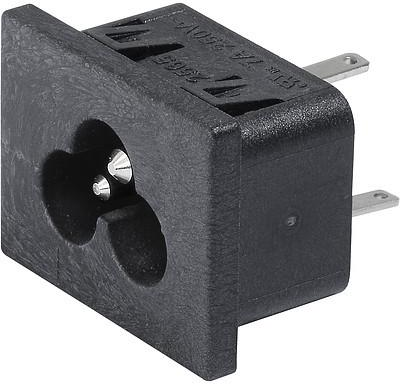

Plug C6, snap-in, solder connection, black, 6160.0090
Unit Price (€ / pc.)
1.9516 € *
Standard delivery time from the manufacturer is: On Request
IEC panel plug, 6160.0090, SCHURTER
Features
- Contact pins are turned from solid material
- Pin temperature 70 °C
- Protection class I
Applications
- Suitable for appliances with protection class I
Technical specifications
| Switch illuminated | No | |
| Colour | black | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current UL/CSA | 10 A | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 125 V | |
| Rated current IEC | 2.5 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C6 | |
| Fuse holder present | No | |
| Panel thickness | 3 mm | |
| Version | panel plug | |
| Design | straight | |
| Power switch available | No | |
| Connection | solder connection | |
| Line filter present | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
