6160.0047 | SCHURTER
Plug C8, 2 pole, screw mounting, solder connection, black, 6160.0047
Order No.: 59P0956
EAN: 4099891585198
MPN:
6160.0047
2571-X-2200-A-200B-00
This item is no longer available.
As an alternative, we recommend the following item:
Plug C8, 2 pole, screw mounting, solder connection, black, 6160.0012
Order No.: 59P7684
Manufacturer: SCHURTER
per pc. 1.0829 € *

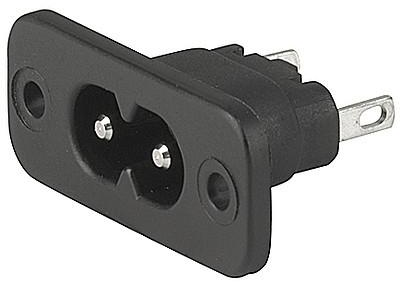

IEC appliance inlet C8, 6160.0047, SCHURTER
IEC appliance inlet C8, Screw-on mounting, Front side.
Technical specifications
| Switch illuminated | No | |
| Colour | black | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current UL/CSA | 7 A | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 125 V | |
| Rated current IEC | 2.5 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C8 | |
| Fuse holder present | No | |
| Pin number | 2 pole | |
| Version | plug | |
| Design | straight | |
| Power switch available | No | |
| Connection | solder connection | |
| Line filter present | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
