6160.0018 | SCHURTER

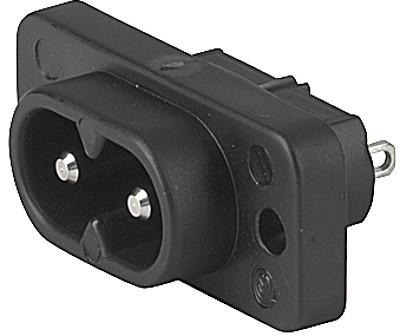

Panel plug C8, 2 pole, screw mounting, solder connection, black, 6160.0018

Order No.: 59P7688
EAN: 4099889868340
MPN:
6160.0018
2573-X-8800-A-200B
Series: 2573
6160.0018 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3090 €

Plug, 6160.0018, SCHURTER

IEC Appliance inlet C8, Front side, Solder terminals.

Features

  • Panel mountable
  • Housing material: PA6, UL 94V-0
  • Protection class: 2
Technical specifications
Filter Property Value
Switch illuminated No
Assembly screw mounting
Rated voltage UL/CSA 125 V
Rated current UL/CSA 7 A
Pin temperature 70 °C
Fuse holder present No
Design straight
Colour black
Pin number 2 pole
Rated voltage IEC 250 V
Product type panel plug
Line filter present No
IEC designation C8
Rated current IEC 2.5 A
Type of locking No
Connection solder connection
Power switch available No
Logistics
Property Value
Original Packaging Carton with 100 pieces
MSL MSL 1
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
