6160.0017 | SCHURTER

Panel plug C8, 2 pole, screw mounting, plug-in connection, black, 6160.0017

Order No.: 41F382
EAN: 4099889864120
MPN:
6160.0017
2573-X-7700-A-200B
Series: 2573

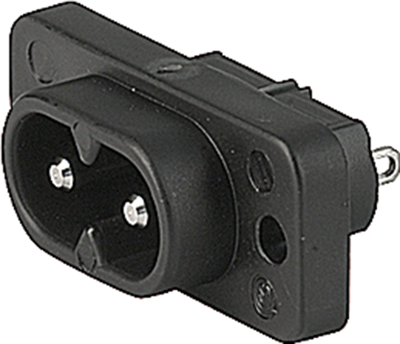

6160.0017 SCHURTER Device Connectors Image 1
6160.0017 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.5470 €

IEC appliance inlets, screw-mount at the front, type Schurter/O. Heil 2573.

To IEC/EN 60320-1, mounting flange with through holes, pin temperatures up to +70° C, 2-pole, 2.5 A/250 VAC; Degree of protection (at the front): IP 20 to IEC 60529, suitable for devices with safety class II to IEC 61140. Housing material: polyamide (PA6), UL 94 V-0. Color: black. Certifications: VDE, Semko, UL, CSA.

Technical attributes (type, connections): 2573-X-7700-A-200B, 2.8 x 0.8 mm tab terminals

Technical specifications
Filter Property Value
Rated voltage IEC 250 V
Pin temperature 70 °C
Power switch available No
Colour black
Assembly screw mounting
Rated voltage UL/CSA 125 V
Rated current UL/CSA 7 A
Fuse holder present No
Design straight
IEC designation C8
Connection plug-in connection
Switch illuminated No
Product type panel plug
Pin number 2 pole
Type of locking No
Rated current IEC 2.5 A
Line filter present No
Logistics
Property Value
Customs tariff number 85366990
Original Packaging Carton with 100 pieces
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
