6160.0008 | SCHURTER

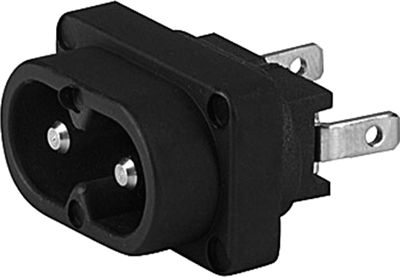

Panel plug C8, 2 pole, solder connection, black, 6160.0008
Order No.: 41F394
EAN: 4099889864151
MPN:
6160.0008
2572-X-2200-A-500A
This item is no longer available.
As an alternative, we recommend the following item:
Panel plug C8, 2 pole, snap-in, solder connection, black, 4300.0102
Order No.: 59P9701
Manufacturer: SCHURTER
per pc. 0.6902 € *
IEC appliance inlets, for insert mounting, type Schurter/O. Heil 2572.
To IEC/EN 60320-1, pin temperatures up to +70° C, 2-pole, 2.5 A/250 VAC; Degree of protection (at the front): IP 20 to IEC 60529, suitable for devices with safety class II to IEC 61140. Housing material: polyamide (PA6), UL 94 V-0. Color: black. Certifications: VDE, Semko, UL, CSA.
Technical attributes (type, connections): 2572-X-2200-A-500A, short solder terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 70 °C | |
| Panel thickness | 4.8 mm | |
| Fuse holder present | No | |
| Rated voltage UL/CSA | 125 V | |
| Connection | solder connection | |
| Power switch available | No | |
| Design | straight | |
| Pin number | 2 pole | |
| Type of locking | No | |
| IEC designation | C8 | |
| Switch illuminated | No | |
| Rated current UL/CSA | 7 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | panel plug | |
| Rated current IEC | 2.5 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
