6160.0003 | SCHURTER

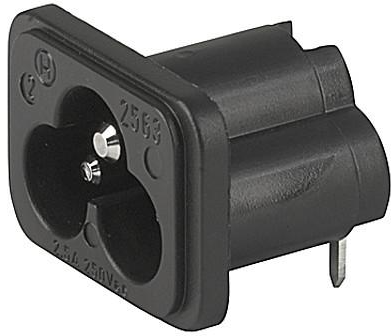

Panel plug C6, 3 pole, PCB connection, black, 6160.0003
Unit Price (€ / pc.)
1.9278 € *
Standard delivery time from the manufacturer is: 10 Weeks
Plug, 6160.0003, SCHURTER
IEC Appliance inlet C6, Screw-on mounting, Solder terminals.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
- Delivery without mounting bracket
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 125 V | |
| Connection | PCB connection | |
| Rated voltage IEC | 250 V | |
| Colour | black | |
| Fuse holder present | No | |
| Power switch available | No | |
| Pin number | 3 pole | |
| Panel thickness | 3.5 mm | |
| Switch illuminated | No | |
| Type of locking | Yes | |
| Design | angled | |
| Pin temperature | 70 °C | |
| Product type | panel plug | |
| Rated current UL/CSA | 7 A | |
| IEC designation | C6 | |
| Line filter present | No | |
| Rated current IEC | 2.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
