6150.5520 | SCHURTER

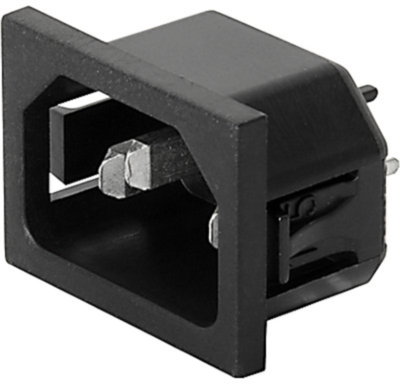

Panel plug C14, 3 pole, snap-in, PCB connection, black, 6150.5520
Unit Price (€ / pc.)
1.3447 € *
Standard delivery time from the manufacturer is: 8 Weeks
Plug, 6150.5520, SCHURTER
IEC Appliance inlet C14, mates to Felcom.
Features
- For PCB mounting
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 15 A | |
| Panel thickness | 2 mm | |
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | black | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | panel plug | |
| Line filter present | No | |
| IEC designation | C14 | |
| Rated current IEC | 10 A | |
| Type of locking | No | |
| Connection | PCB connection | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
