6136.0478.0211 | SCHURTER

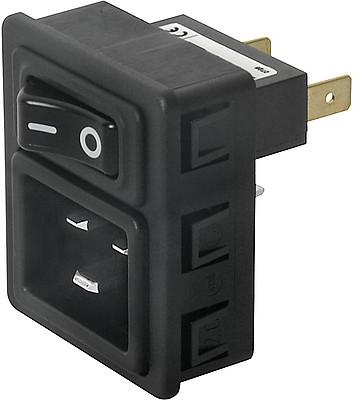

Combination element plug C20, 3 pole, snap-in mounting, plug-in connection, black, 6136.0478.0211
Order No.: 59P0229
EAN: 4099891582661
MPN:
6136.0478.0211
6136-CFTBL160C0-000-4112-1000
Series: 6136
Unit Price (€ / pc.)
13.9468 € *
Standard delivery time from the manufacturer is: 10 Weeks
IEC plug C20, 6136.0478.0211, SCHURTER
Features
- Unwired
- Snap-in version front side
- Protection class I
- Circuit breaker type TA35
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Connection | plug-in connection | |
| Rated voltage IEC | 250 V | |
| Colour | black | |
| Swich colour | black | |
| Fuse holder present | No | |
| Power switch available | Yes | |
| Pin number | 3 pole | |
| Panel thickness | 1.5 mm | |
| Switch illuminated | No | |
| Type of locking | No | |
| Number of poles switch | 1 pole | |
| Design | straight | |
| Assembly | snap-in mounting | |
| Pin temperature | 70 °C | |
| Version | plug | |
| Product type | combination element | |
| Rated current UL/CSA | 20 A | |
| IEC designation | C20 | |
| Line filter present | No | |
| Rated current IEC | 16 A |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
