6135.0032.0310 | SCHURTER

Combination element C14, 2 pole, snap-in mounting, plug-in connection, black, 6135.0032.0310

Order No.: 59P0184
EAN: 4099891582210
MPN:
6135.0032.0310
6135-CBTBF100C0-000-C6135-1113-000
Series: 6135

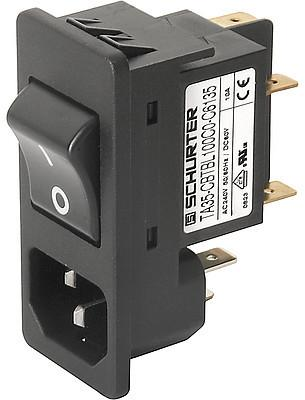

6135.0032.0310 SCHURTER Device Connectors Image 1
6135.0032.0310 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.3744 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1,309.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
80 pcs.
16.3744 €

IEC plug C14, 6135.0032.0310, SCHURTER

Features

  • Unwired
  • Snap-in version front side
  • Protection class I
  • Circuit breaker type TA35

Applications

  • Suitable for use in equipment
  • Suitable for appliances with protection class I
Technical specifications
Colour black
Number of poles switch 2 pole
Design straight
Version combination element
IEC designation C14
Panel thickness 2 mm
Rated voltage UL/CSA 250 V
Line filter present No
Rated current UL/CSA 15 A
Switch illuminated No
Connection plug-in connection
Type of locking No
Rated voltage IEC 250 V
Pin number 2 pole
Swich colour black
Rated current IEC 10 A
Power switch available Yes
Pin temperature 70 °C
Fuse holder present No
Assembly snap-in mounting
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
